OG Xbox Crystal Mod

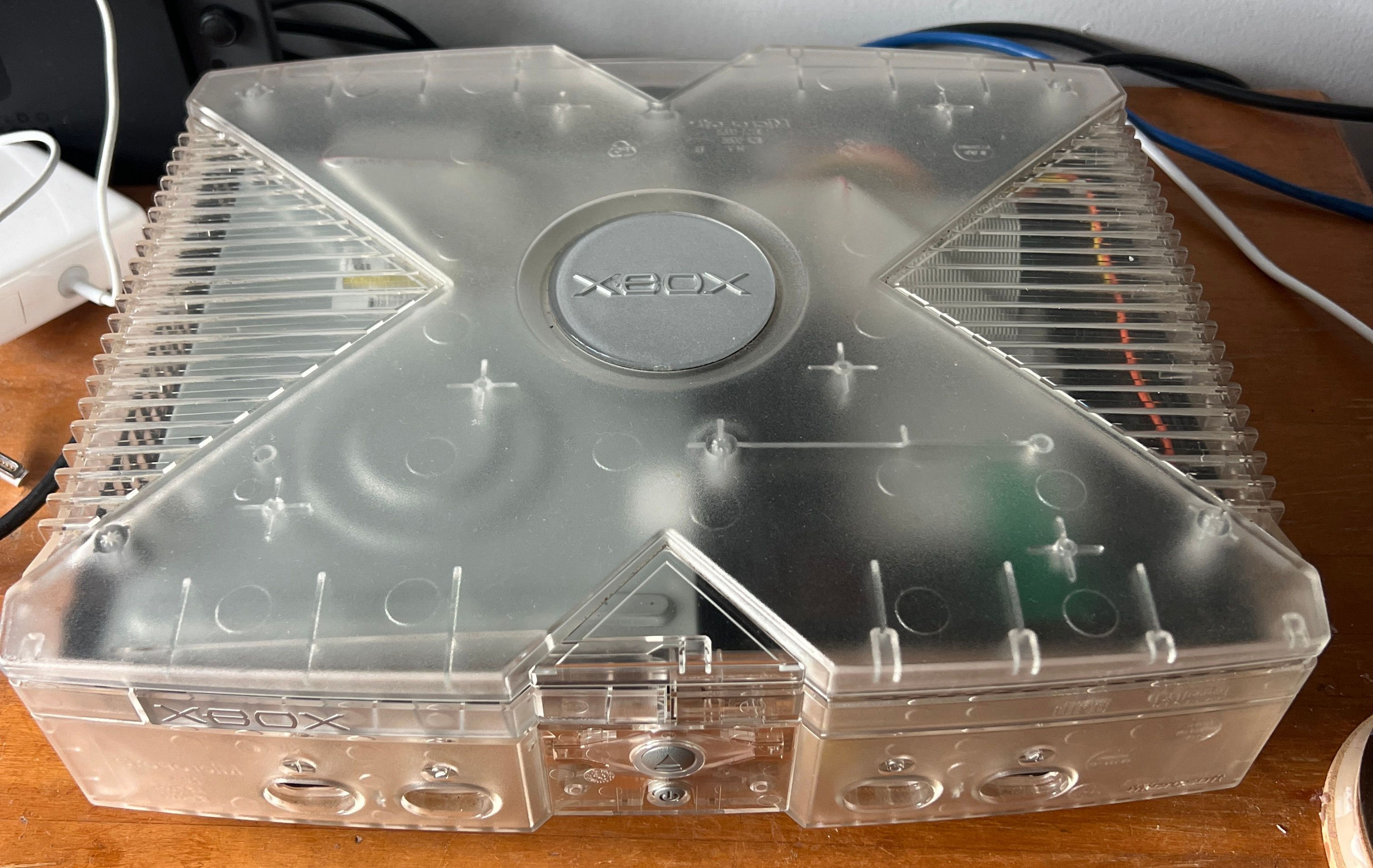

A full breakdown of modding and restoring an original Xbox Crystal Edition.
🧾 What Was Used
Crystal OG Xbox (v1.6 motherboard)
Aladdin XT PLUS2 modchip
500GB laptop HDD
IDE to SATA adapter
Original IDE cable
FATXplorer
DVD-R disc
TruHeXEn 2021 ISO
XBMC4Gamers dashboard pack
Aladdin XT PLUS2 modchip
500GB laptop HDD
IDE to SATA adapter
Original IDE cable
FATXplorer
DVD-R disc
TruHeXEn 2021 ISO
XBMC4Gamers dashboard pack
🛠️ Step-by-Step Build
Bought Crystal Xbox (no cables)
Got power, AV, and controller
Opened Xbox and confirmed v1.6 board
Removed heatsinks and replaced thermal paste
Installed Aladdin XT PLUS2 modchip:
– Soldered LPC header
– Wired D0 and LFRAME for v1.6
– Bridged BT to GND to force chip on
Connected 500GB laptop drive via IDE-SATA adapter
Used FATXplorer to format: C, E, F, and G partitions
Reinstalled HDD → booted Xbox → got Error 16
Burned TruHeXEn 2021 to DVD-R
Booted from disc:
– Fixed missing clock/date
– Installed XBMC4Gamers
Xbox now boots to XBMC4Gamers with:
– Full HDD access (F:\ + G:)
– Modchip BIOS active
– Fully working dashboard
Got power, AV, and controller
Opened Xbox and confirmed v1.6 board
Removed heatsinks and replaced thermal paste
Installed Aladdin XT PLUS2 modchip:
– Soldered LPC header
– Wired D0 and LFRAME for v1.6
– Bridged BT to GND to force chip on
Connected 500GB laptop drive via IDE-SATA adapter
Used FATXplorer to format: C, E, F, and G partitions
Reinstalled HDD → booted Xbox → got Error 16
Burned TruHeXEn 2021 to DVD-R
Booted from disc:
– Fixed missing clock/date
– Installed XBMC4Gamers
Xbox now boots to XBMC4Gamers with:
– Full HDD access (F:\ + G:)
– Modchip BIOS active
– Fully working dashboard
